TTDEL Series Dispersal Element

TTI’s TTDEL Series dispersal element line is produced in the USA using USA and German materials. Designed to maximize the surface area of oil that is exposed to vacuum dehydration by creating uniformed droplets as they pass through the TTDEL series element. This newly redesigned dispersal element is packed with features that help it stand up to continuous use normally found in the vacuum dehydration process.

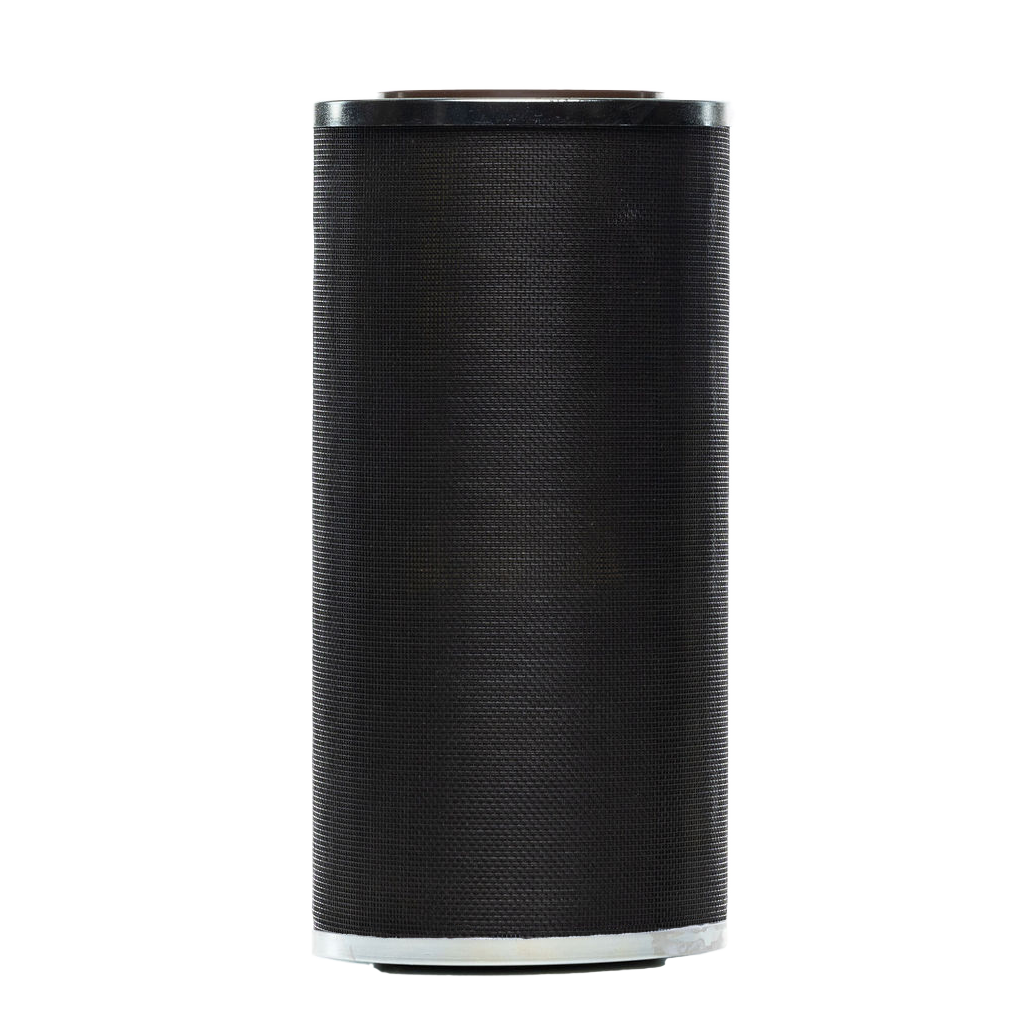

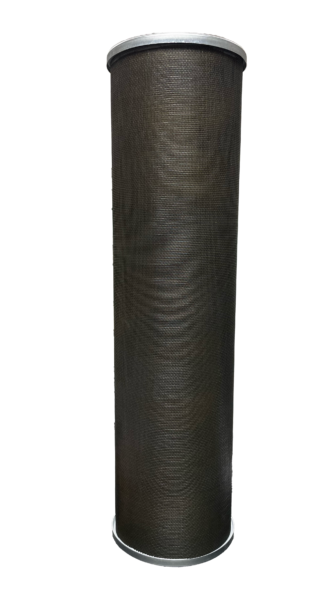

TTDEL Front

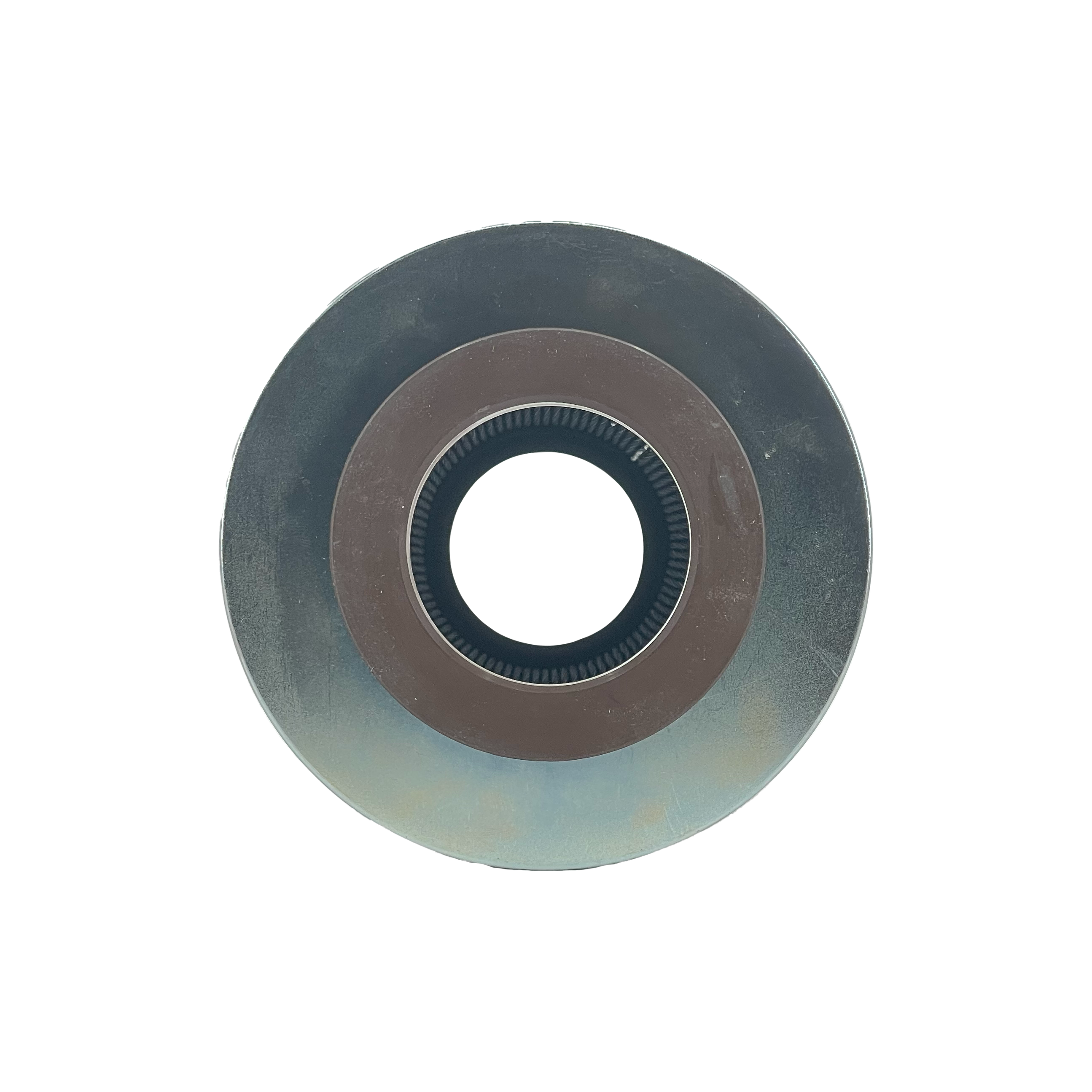

TTDEL Top
previous arrow
next arrow

Dual Phase Filtration

Delivers superior filtration efficiency and dirt holding capacity with a low pressure drop.

Close up image of TTI's Dual Phase Microglass Media. Including arrows that highlight both the pre-filter phase and final retentive phase. The pre-filter phase provides high dirt holding capacity for capturing larger particulates in fluids, extending the life of the filter element. The final retentive phase has fine denier fibers that provide high efficiency polishing to remove the finest particulates.
Download Data Sheet

Performance

  • 2000 hour change out recommended for continuous use
  • 4320 hour change out recommended for intermittent use
  • immediate change out recommended when flow restriction is noted in system
Drawing of TTI's TTDEL Series Dispersal Element.
TTI PN–Length (inches)
TTDEL11 = 11.00
22 = 22.00
36 = 36.00
Part Number Example: TTDEL-22 = TTDEL (22 length)
