Testing Capabilities & Hardware

At TTI, innovation is at the core of everything we do. Our testing facility in Germany is equipped with the latest technology and hardware to propel our commitment to excellence in the industrial filtration industry.

The Importance of Filtration Product Testing

In the ever-evolving landscape of industrial filtration, ensuring the reliability and performance of our products is paramount. Rigorous testing protocols are essential to validate performance metrics such as filtration efficiency, particle capture rates, pressure drops, and durability under real-world conditions.

Our testing facility and hardware play a pivotal role in driving continuous improvement and pushing the boundaries of what’s possible in filtration technology.

Excited to learn more? Check out the full details of our testing lab capabilities in our informational handout!

Cutting-Edge Hardware for Optimal Performance

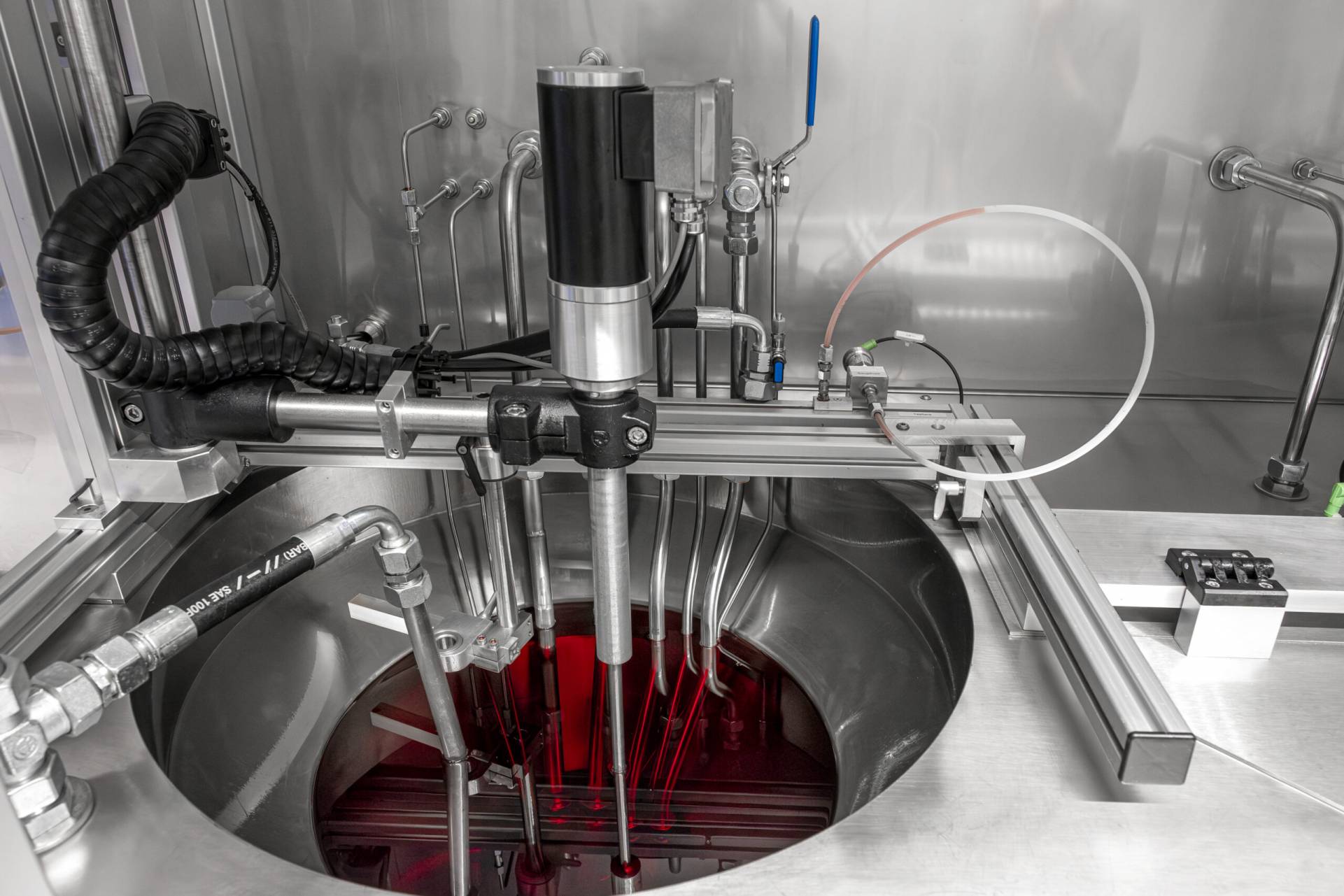

Efficiency Test Stands
Efficiency Test Stands

Hardware Features:
• 3-Loop-Hydraulic-System with two main pumps to ensure turbulent flow conditions to a wide flow range
• Static and dynamic volume options
• Pressure mode, suction mode, and bypass mode
• SLS and HCB particle counting system for a wide range of particle size and Test Dusts

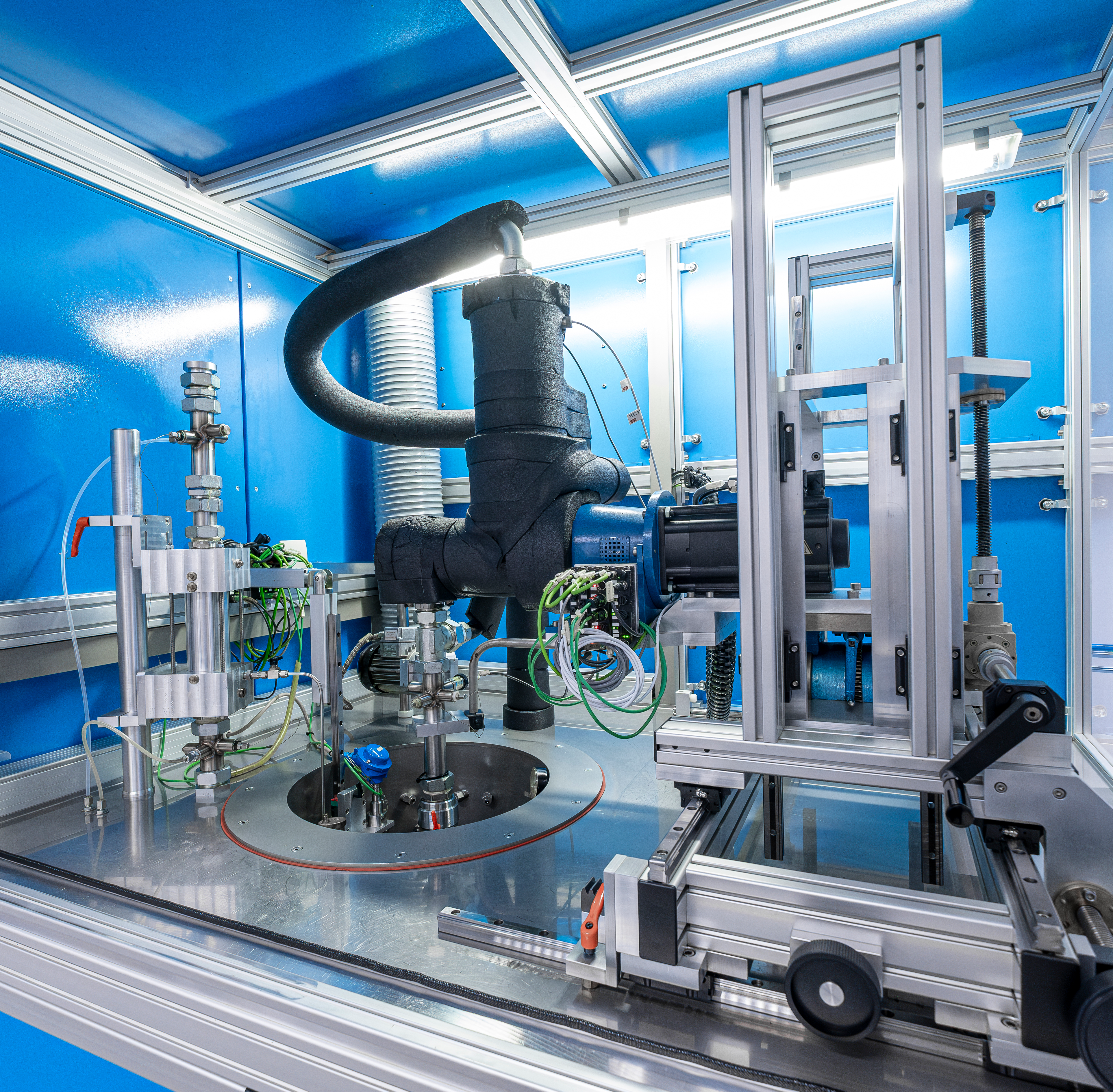

Flow Characteristics Test Stands
Flow Characteristics Test Stands

Hardware Features:
• 2-Loop-Hydraulic-System with two main pumps to ensure good decoupling of the thermal mixing with simultaneous quick adjustment of the measuring volume flows for a wide volume flow and temperature range
• Test operation with static and dynamic volume flow options
• Pressure mode and suction mode

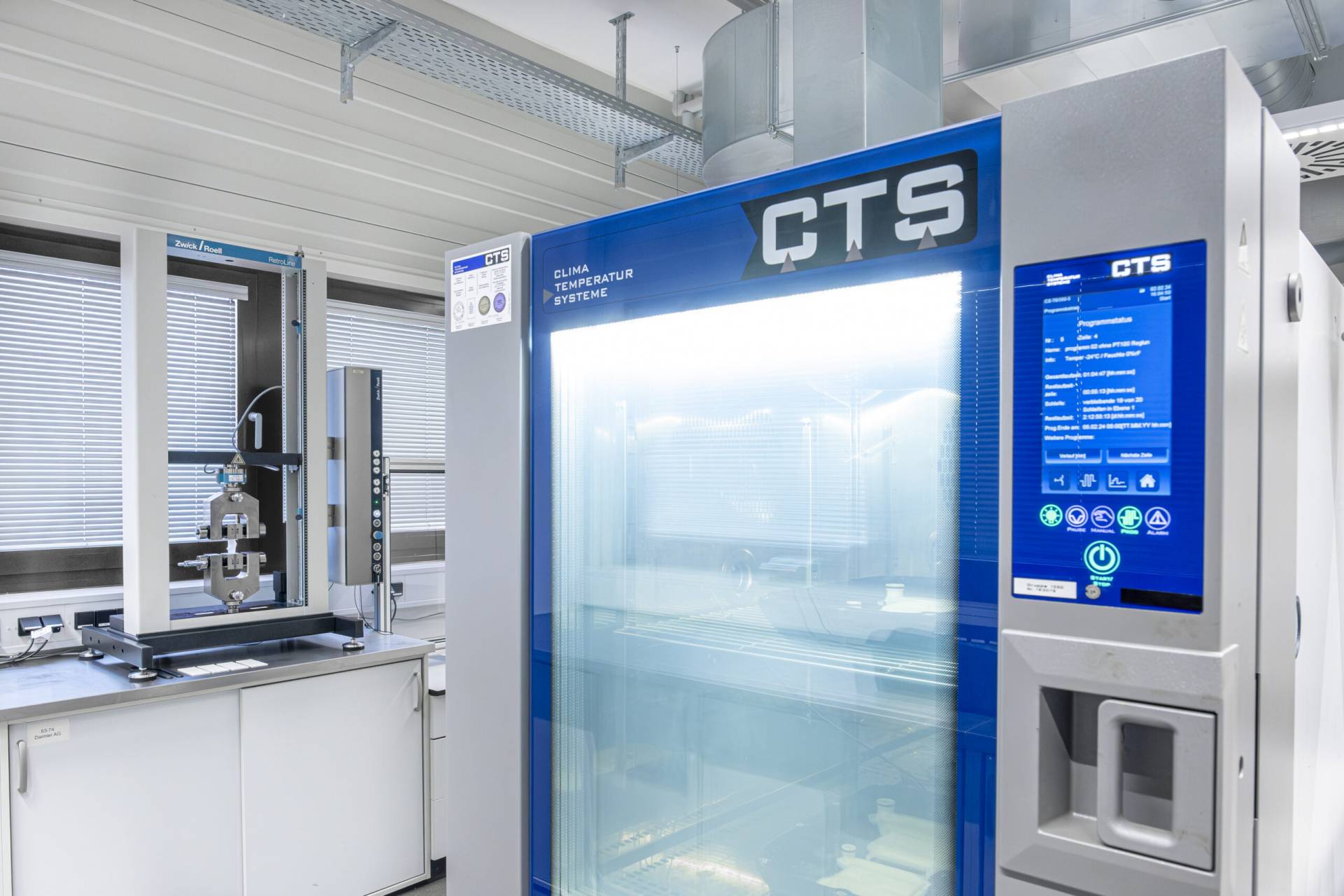

Climate Cabinet
Climate Cabinet

Hardware Features:
• Temperature range: -70°C up to +180°C • Humidity range: 10% up to 98% r.H.
• Dew point range: -10°C up to +94°C
• Test room volume: 350l
• 2.2K/min temperature change speed with 55kg mass for cooling and heating within the temperature range

Additional Equipment
Additional Equipment

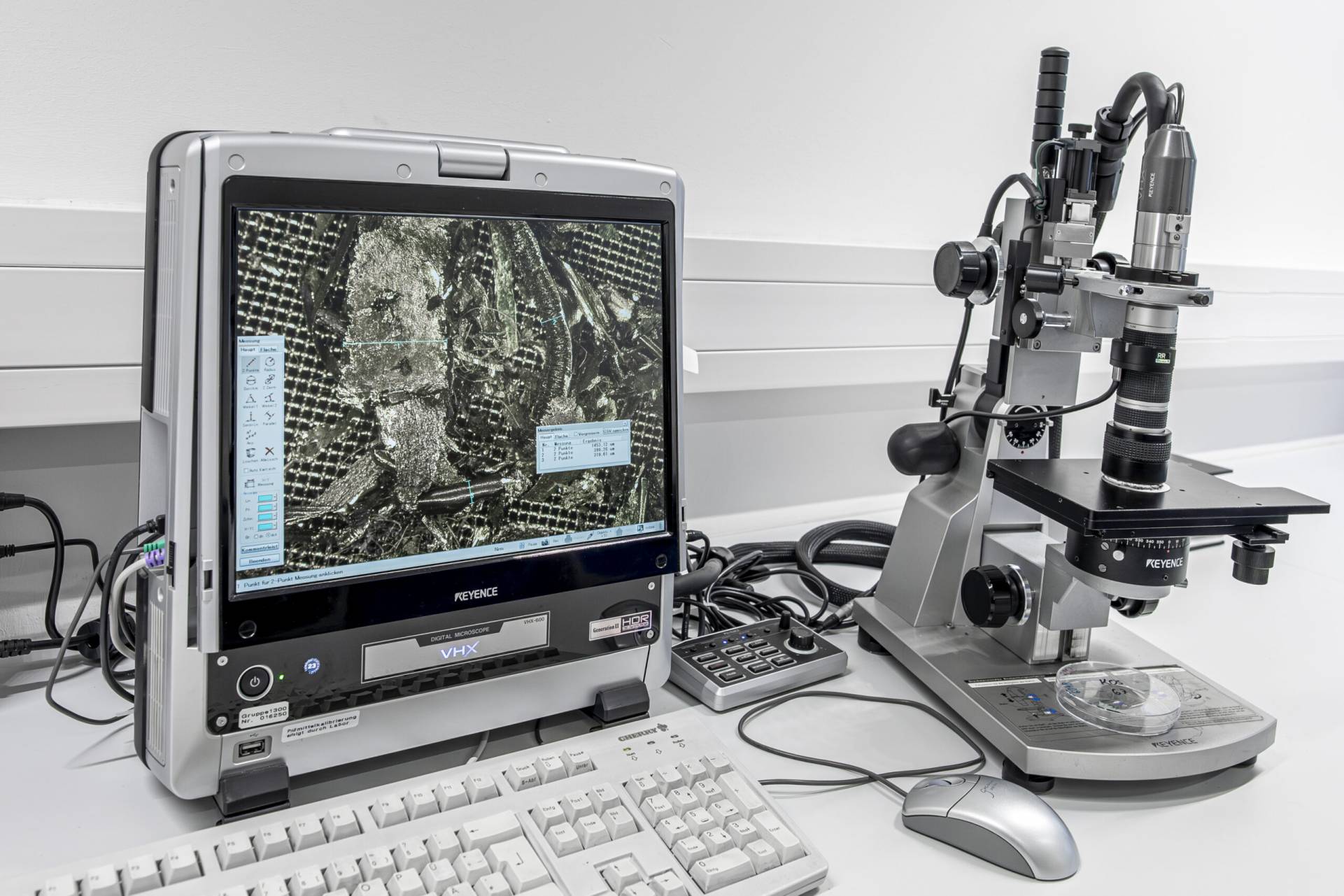

Digital Video Microscope: 2-Lens System with a wide range of magnification and features
Burst Pressure Test Stand: Test of weld seamed plastic components
Air Permeability Test Stand: ISO 9237 and ASTM D 737 Determination of the air permeability of textiles
Bubble Point Test Stand: ISO 2942 Verification of fabrication integrity and the first bubble point

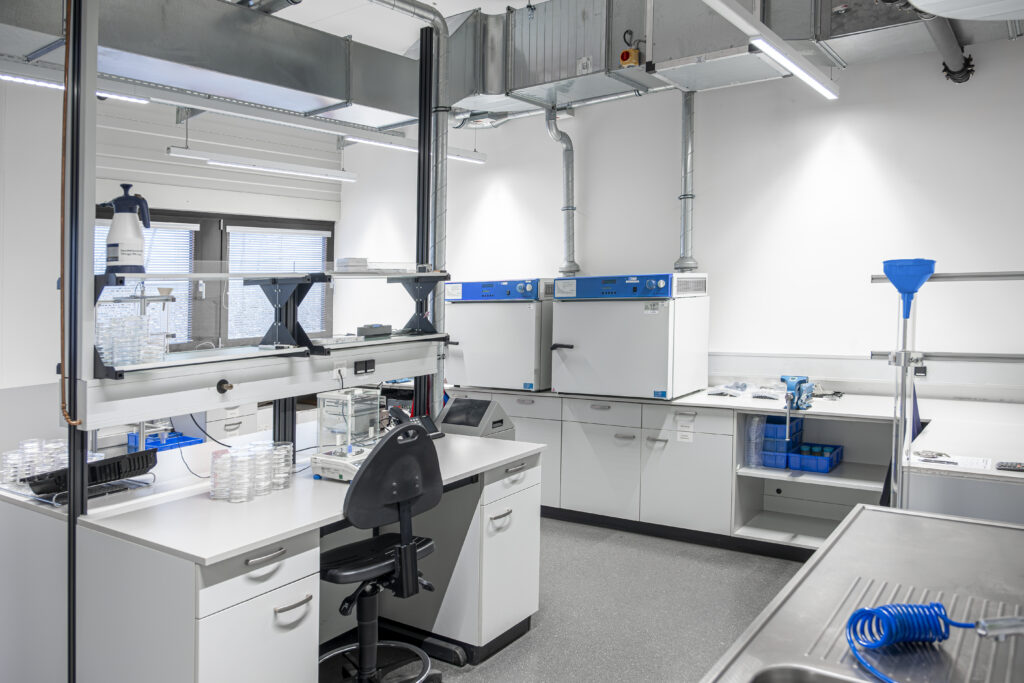

Technical Cleanliness Test Room: ISO 16232

previous arrowprevious arrow
next arrownext arrow

Commitment to Product and Process Innovation

At TTI, we believe in doing our part to drive progress and shape the future of filtration technology. Our investment in a state-of-the-art testing laboratory underscores our dedication to delivering unparalleled solutions that exceed our customers’ expectations and address the evolving challenges of the industry.

From developing advanced filter media to pioneering new proprietary technologies, we’re continuously pushing the boundaries of innovation to deliver products that set new standards for efficiency, reliability, and performance. We also recognize that true innovation thrives on collaboration. That’s why we’re committed to fostering collaborative partnerships with industry leaders, research institutions, and customers to drive progress and shape the future of industrial filtration.

Join Us in Shaping the Future of Filtration

If you have any questions on how TTI’s testing capabilities can benefit your business, or want to collaborate, let us know!
