Rebuildable Stainless Steel PowerBreather^TM

Protects lubricants and equipment from moisture and particulate intrusion. Extends service cycles and equipment life in high-flow applications.

The TTI Rebuildable PowerBreather offers the ability to remove both particulate and moisture in high-flow and extreme humidity environments.

While in service, the PowerBreather eliminates moisture and particulate intrusion into the system. During shutdown, the PowerBreather silica gel attracts moisture by actively drying the system.

GOT QUESTIONS, THEN CLICK HERE FOR FAST AND FRIENDLY ANSWERS

DOWNLOAD BROCHURE

Product Breakdown

1. Pleated Filter Cartridge

Pleated microglass filter cartridge captures airborne contaminants to 1-micron absolute.

2. Desiccant

PowerBreather^TM silica gel strips moisture from incoming air.

3. Sight Glass Indicator

Silica gel changes color from blue to pink when the unit requires rebuilding.

4. Air Vents

Removable stickers keep breather inactive until installation.

5. Integrated Standpipie

Open-flow construction provides negligible resistance to air flow and allows oil mist to coalesce and drain back into the reservoir.

6. Foam Pad

Polymeric foam filter pad captures large particulate, attracts and absorbs oil, and disperses incoming air evenly across the filter cartridge and desiccant media.

7. Easy to Replace Desiccant Bag

Polypropylene bag has handles for easy removal.

8. Rugged Housing

Robust 304 SS construction eliminates chance of corrosion in high humidity environments.

Diagram of TTI's Rebuildable PowerBreather Desiccant Breather.

Image of TTI's 1-micron absolute air filter found inside of TTI's rebuildable PowerBreather desiccant breathers.

Image of desiccant bag found in TTI's rebuildable PowerBreather desiccant breather.

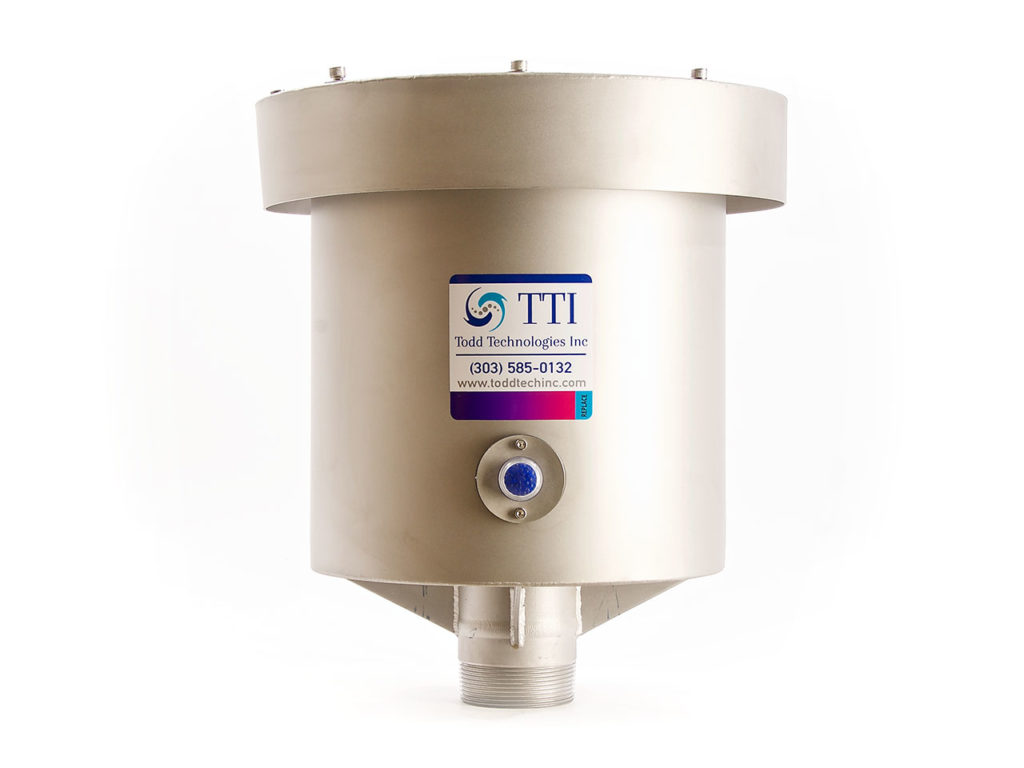

Image of TTI's Rebuildable PowerBreather Desiccant Breather.

Materials

Housing:

304 Stainless Steel

Moisture Absorbing Media:

PowerBreather^TM Silica Gel

Filter Media:

Microglass, Polyurethane

Gasket/Seal:

Buna-N

Features

304 stainless steel housing
Easy to replace desiccant bags remove moisture from incoming air
Pleated filter removes particles to 1-micron absolute
Eliminates rust forming condensation
Prevents water contaminated fluid and sludge deposits
Reduces wear and tear on equipment prolonging life

Dimensions & Specifications

Model	Height	Width	Approx. Dry Weight	Amt. of Desiccant	Max Absorp. Capacity	Max Air Flow Rate	Oper. Temp.	Conn. Size
TT-RS-3	11.5″ 29.2 cm	10.1″ 25.7 cm	16 lbs 7.26 kg	3 lbs 1.36 kg	0.14 gal 0.54 L	85 cfm @ 0.5 PSID	-20-220°F -29-107°C	2″
TT-RS-5	13.75″ 34.9 cm	10.1″ 25.7 cm	20 lbs 9.07 kg	5 lbs 2.27 kg	0.24 gal 0.9 L	85 cfm @ 0.5 PSID	-20-220°F -29-107°C	2″
TT-RS-9	18.25″ 45.4 cm	10.1″ 25.7 cm	27 lbs 12.25 kg	9 lbs 4.08 kg	0.43 gal 1.62 L	80 cfm @ 0.5 PSID	-20-220°F -29-107°C	2″
TT-RS-15	19.25″ 48.9 cm	15.5″ 39.4 cm	49 lbs 22.23 kg	15 lbs 6.80 kg	0.71 gal 2.7 L	205 cfm @ 0.5 PSID	-20-220°F -29-107°C	3″
TT-RS-25	22.5″ 57.1 cm	15.5″ 39.4 cm	64 lbs 29.03 kg	25 lbs 11.34 kg	1.19 gal 4.5 L	140 cfm @ 0.5 PSID	-20-220°F -29-107°C	3″
TT-RS-50	31.25″ 79.4 cm	15.5″ 39.4 cm	100 lbs 45.36 kg	50 lbs 22.68 kg	2.38 gal 9 L	115 cfm @ 0.5 PSID	-20-220°F -29-107°C	3″
TT-RS-75	39.75″ 101 cm	15.5″ 39.4 cm	144 lbs 65.32 kg	75 lbs 34.02 kg	3.57 gal 13.5 L	80 cfm @ 0.5 PSID	-20-220°F -29-107°C	3″

All models are available in EU with orange gel and follow the same dimensions. EU codes are the following: TTE-RS-3, TTE-RS-5, TTE-RS-9, TTE-RS-15, TTE-RS-25, TTE-RS-50, TTE-RS-75

Rebuild Parts & Accessories

(TTI Rebuild Kits can be used in DES-CASE Rebuildable Units)

Model	Description
TT-RS-*-RK	Rebuildable Stainless Steel Breather Kits
TT-RS-*-F1	Rebuildable Stainless Steel Breather Microglass Filter Cartridge
TT-RS-*-D1	Rebuildable Stainless Steel Desiccant Bag
TT-RS-*-SG1	Rebuildable Stainless Steel Breather Sight Glass
TT-RS-*-P1	Rebuildable Stainless Steel Breather Foam Pad Insert
TT-RS-*-G1	Rebuildable Stainless Steel Breather Gasket Seals

Note: For part codes containing an (*), substitute the appropriate RS model number. Example: the part code for a rebuildable stainless steel breather kit for the TT-RS-75 would be TT-RS-75-RK.
