TT8900 Series Filter Element

TTI’s PowerGuardTM Filter line is produced in the USA using USA and German materials. TTI has leveraged 58 years of filter manufacturing expertise of FG Industrial Filtration (formerly Mahle) to deliver the PowerGuardTM product line to the North American marketplace. TTI’s Dual Phase Microglass media provides wold class filtration performance. The Dual Phase technology provides Beta 1000 efficiencies with a built-in pre-filter layer to extend filter life and reduce initial pressure drops.

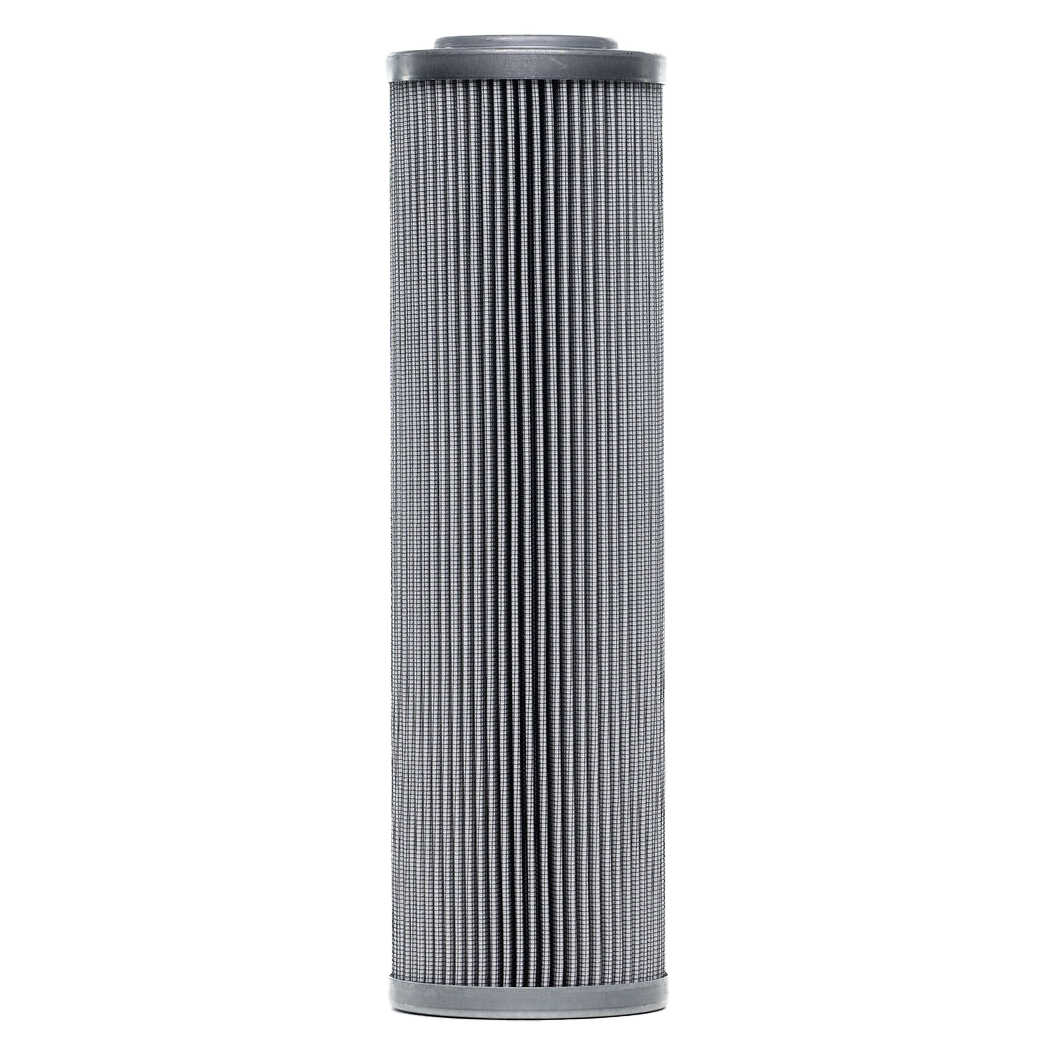

Image of TTI's TT8900 Series Filter Element.

Dual Phase Filtration

Delivers superior filtration efficiency and dirt holding capacity with a low pressure drop.

Close up image of TTI's Dual Phase Microglass Media. Including arrows that highlight both the pre-filter phase and final retentive phase. The pre-filter phase provides high dirt holding capacity for capturing larger particulates in fluids, extending the life of the filter element. The final retentive phase has fine denier fibers that provide high efficiency polishing to remove the finest particulates.

Performance

  • 150 PSID collapse pressure
  • 50 PSID change out recommended
  • 250°F (121°C) maximum operating temperature

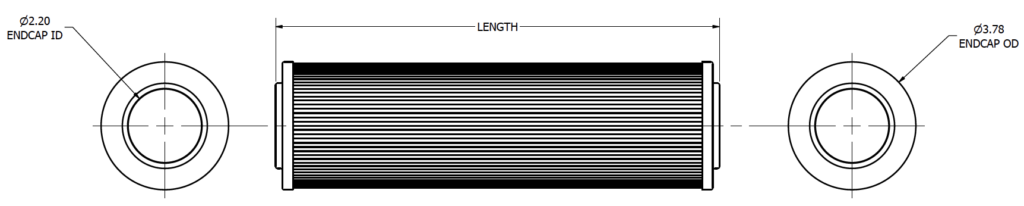

Drawing of TTI's TT8900 Series Filter Element.
TTI PNLength (inches)Micron Rating β1000Media TypeSeal TypeSpring
TT890013 = 12.901(Omit) = Dual Phase Microglass*
*Standard Option
B = BunaOmit = No Spring
16 = 16.763WA = Water Absorptive*
*Not available in 1 micron
V = VitonSP = With Spring
26 = 25.706SD = Static Dissipative
39 = 38.7010
25
Part Number Example: TT8900-13-3V = TT8900 (13 length, 3 micron, viton seal type)
