TT33HC Series Filter Element

TTI’s PowerGuardTM Filter line is produced in the USA using USA and German materials. TTI has leveraged 58 years of filter manufacturing expertise of FG Industrial Filtration (formerly Mahle) to deliver the PowerGuardTM product line to the North American marketplace. TTI’s Dual Phase Microglass media provides wold class filtration performance. The Dual Phase technology provides Beta 1000 efficiencies with a built-in pre-filter layer to extend filter life and reduce initial pressure drops.

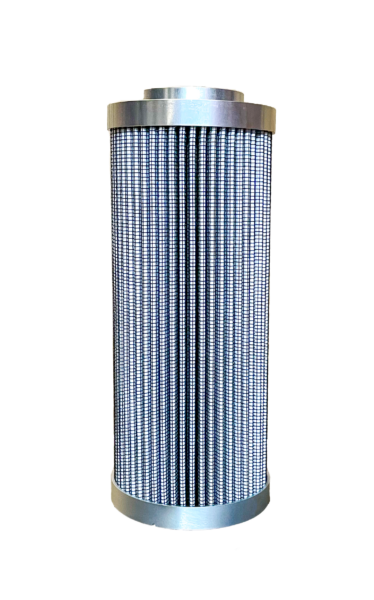

TT33HC Front
TT33HC Top
TT33HC Bottom
previous arrow
next arrow

Dual Phase Filtration

Delivers superior filtration efficiency and dirt holding capacity with a low pressure drop.

Close up image of TTI's Dual Phase Microglass Media. Including arrows that highlight both the pre-filter phase and final retentive phase. The pre-filter phase provides high dirt holding capacity for capturing larger particulates in fluids, extending the life of the filter element. The final retentive phase has fine denier fibers that provide high efficiency polishing to remove the finest particulates.

Performance

  • 3000 PSID collapse pressure
  • 50 PSID change out recommended
  • 250°F (121°C) maximum operating temperature
TTI PNLength (inches)Micron Rating β1000Media TypeSeal Type
TT33HC7 = 6.431(Omit) = Dual Phase Microglass*
*Standard Option
B = Buna
10 = 10.003WA = Water AbsorptiveV = Viton
14 = 12.936SD = Static Dissipative
26 = 25.6310
25
Part Number Example: TT33HC-7-3V = TT33HC (7 length, 3 micron, viton seal type)
