TT06 Series Filter Element

TT06 PowerGuard™ Filter Element

TTI’s PowerGuard™ Filter line is produced in the USA using USA and German materials. TTI has leveraged 58 years of filter manufacturing expertise of FG Industrial Filtration (formerly Mahle) to deliver the PowerGuard™ product line to the North American marketplace. TTI’s Dual Phase Microglass media provides world class filtration performance. The Dual Phase technology provides Beta 2000 efficiencies with a built-in pre-filter layer to extend filter life and reduce initial pressure drop.

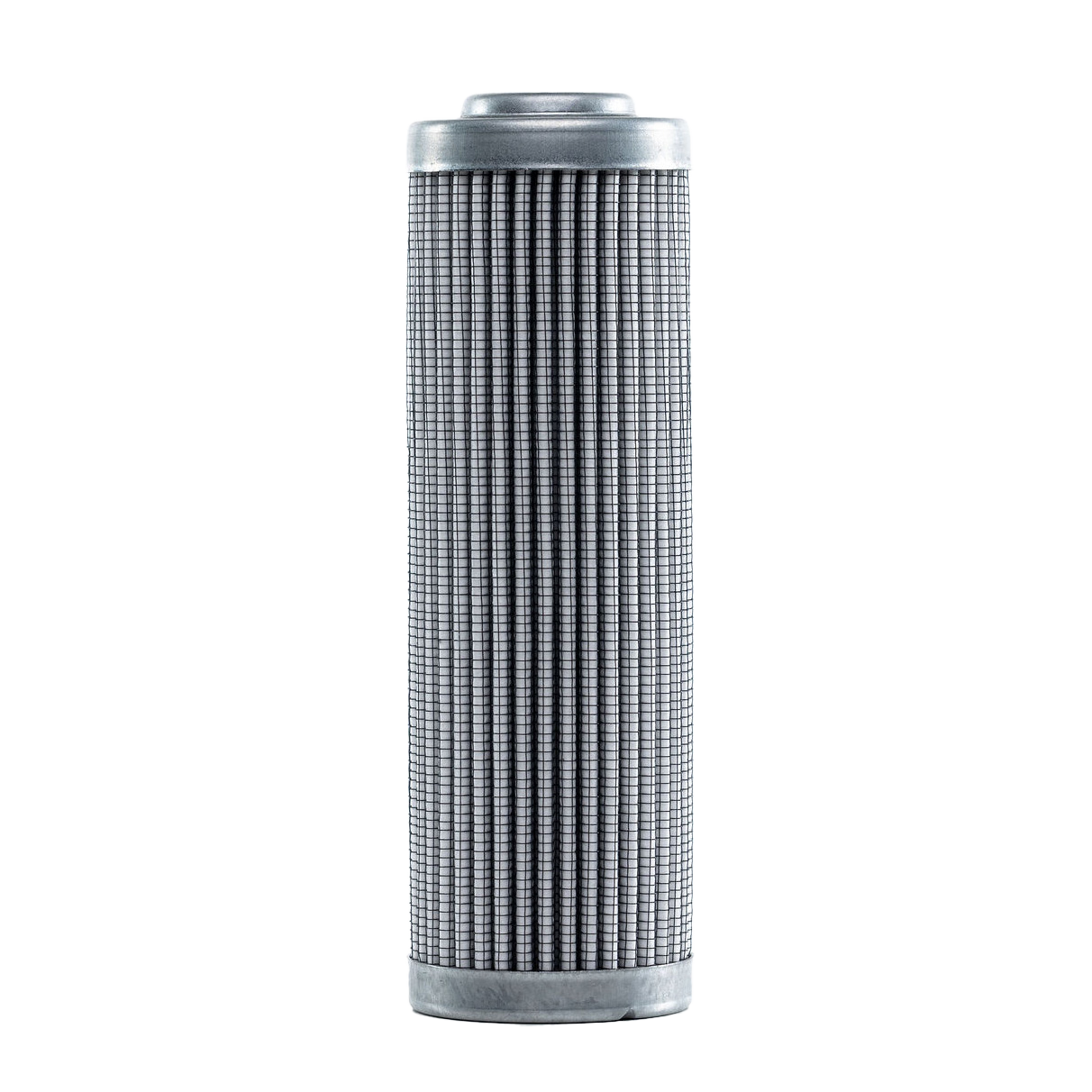

TT06 Front

TT06 Top

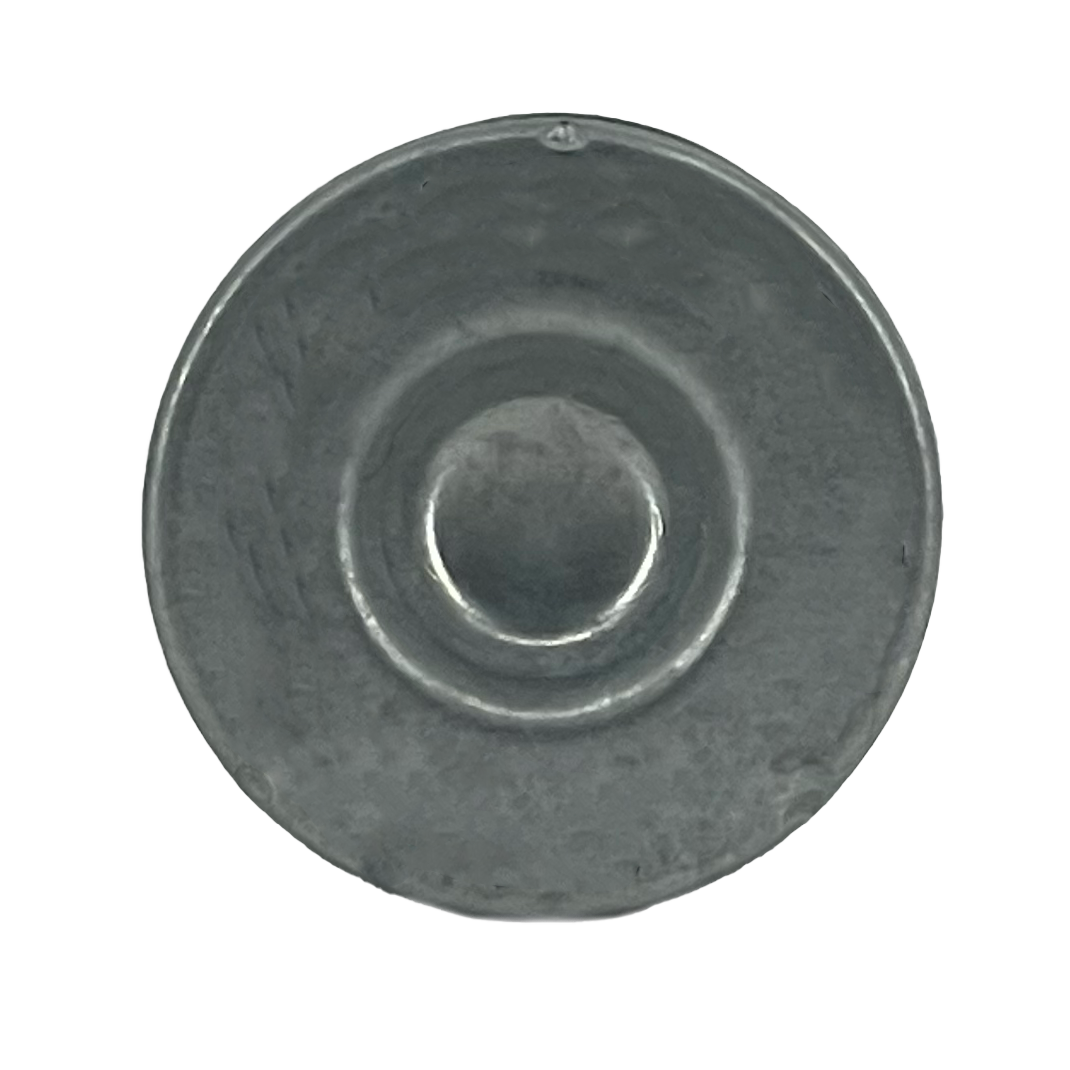

TT06 Bottom

Dual Phase Filtration

Delivers superior filtration efficiency and dirt holding capacity with a low pressure drop.

Close up image of TTI's Dual Phase Microglass Media. Including arrows that highlight both the pre-filter phase and final retentive phase. The pre-filter phase provides high dirt holding capacity for capturing larger particulates in fluids, extending the life of the filter element. The final retentive phase has fine denier fibers that provide high efficiency polishing to remove the finest particulates.

Download Data Sheet

Performance

435 PSID collapse pressure
50 PSID change out recommended
250°F (121°C) maximum operating temperature

TTI PN	–	Length (inches)	–	Micron Rating β2000	Media Type	Seal Type
TT06		4 = 3.32		1	(Omit) = Dual Phase Microglass* *Standard Option	B = Buna
		7 = 6.00		3	WA = Water Absorptive* *Not available for 1 micron	V = Viton
				6	SD = Static Dissipative
				10
				25

Part Number Example: TT06-4-3V = TT06 (4 length, 3 micron, viton seal type)
