TT1833 Series Filter Element

TTI’s PowerGuard^TM Filter line is produced in the USA using USA and German materials. TTI has leveraged 58 years of filter manufacturing expertise of FG Industrial Filtration (formerly Mahle) to deliver the PowerGuard^TM product line to the North American marketplace. TTI’s Dual Phase Microglass media provides wold class filtration performance. The Dual Phase technology provides Beta 1000 efficiencies with a built-in pre-filter layer to extend filter life and reduce initial pressure drops.

TT1833 Front

TT1833 Top

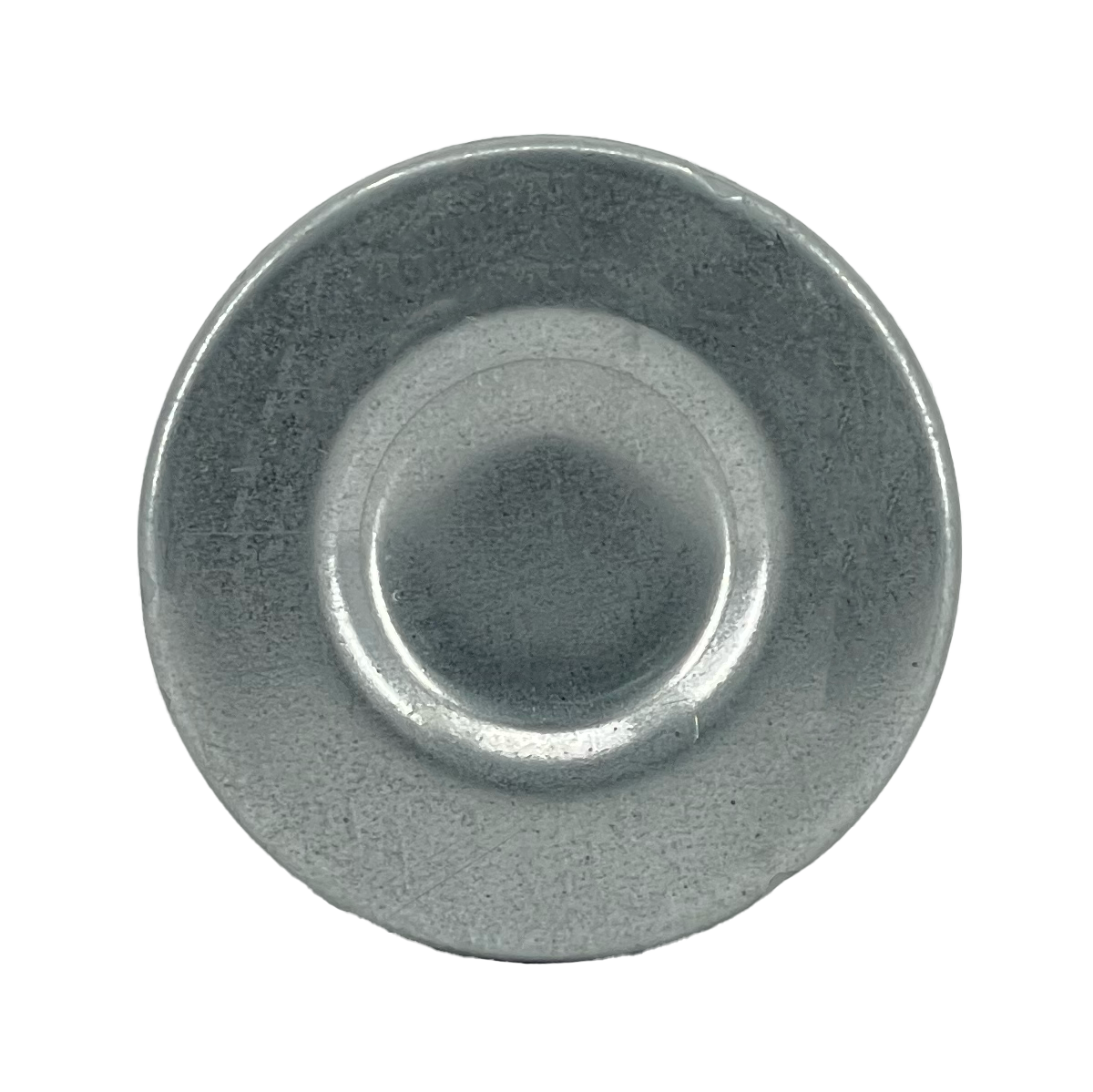

TT1833 Bottom

Dual Phase Filtration

Delivers superior filtration efficiency and dirt holding capacity with a low pressure drop.

Close up image of TTI's Dual Phase Microglass Media. Including arrows that highlight both the pre-filter phase and final retentive phase. The pre-filter phase provides high dirt holding capacity for capturing larger particulates in fluids, extending the life of the filter element. The final retentive phase has fine denier fibers that provide high efficiency polishing to remove the finest particulates.

Download Data Sheet

Performance

290 PSID collapse pressure
50 PSID change out recommended
250°F (121°C) maximum operating temperature

TTI PN	–	Length (inches)	–	Micron Rating β1000	Media Type
TT1833		40 = 5.60		1	(Omit) = Dual Phase Microglass* *Standard Option
		80 = 10.10		3	WA = Water Absorptive* *Not available in 1 micron
		120 = 14.68		6	SD = Static Dissipative
		160 = 20.10		10
				25

Part Number Example: TT1833-40-3 = TT1833 (40 length, 3 micron)
