TT171 Series Filter Element

TTI’s PowerGuard^TM Filter line is produced in the USA using USA and German materials. TTI has leveraged 58 years of filter manufacturing expertise of FG Industrial Filtration (formerly Mahle) to deliver the PowerGuard^TM product line to the North American marketplace. TTI’s Dual Phase Microglass media provides wold class filtration performance. The Dual Phase technology provides Beta 1000 efficiencies with a built-in pre-filter layer to extend filter life and reduce initial pressure drops.

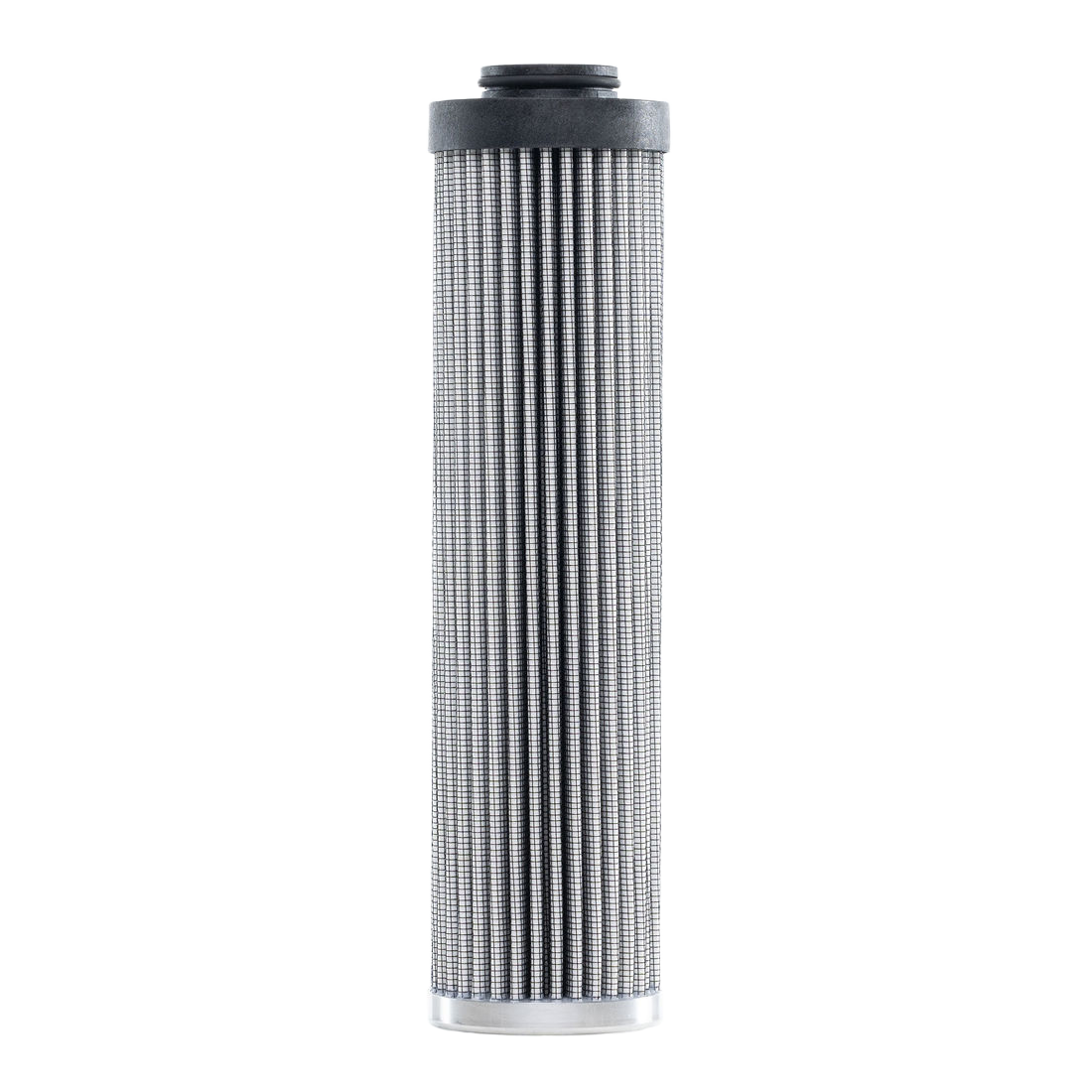

TT171 Front

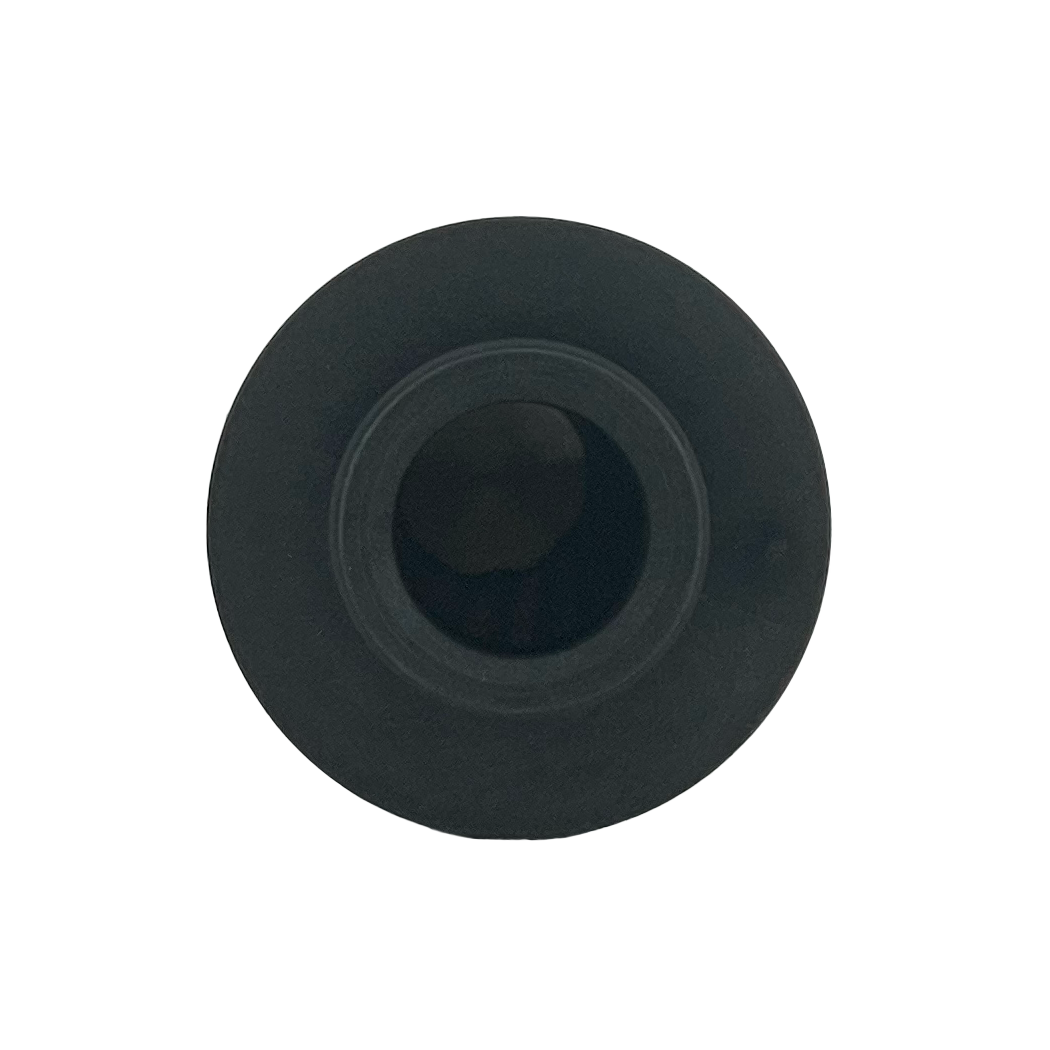

TT171 Top

TT171 Bottom

Dual Phase Filtration

Delivers superior filtration efficiency and dirt holding capacity with a low pressure drop.

Close up image of TTI's Dual Phase Microglass Media. Including arrows that highlight both the pre-filter phase and final retentive phase. The pre-filter phase provides high dirt holding capacity for capturing larger particulates in fluids, extending the life of the filter element. The final retentive phase has fine denier fibers that provide high efficiency polishing to remove the finest particulates.

Download Data Sheet

Performance

3000 PSID collapse pressure
50 PSID change out recommended
250°F (121°C) maximum operating temperature

TTI PN	–	Length (inches)	–	Micron Rating β1000	Media Type	Seal Type
TT171		5 = 5.35		1	(Omit) = Dual Phase Microglass* *Standard Option	B = Buna
		10 = 9.62		3	WA = Water Absorptive	V = Viton
				6	SD = Static Dissipative
				10
				25

Part Number Example: TT171-5-3V = TT171 (5 length, 3 micron, viton seal type)
