A white paper published by Noria
Most of the wear that a machine endures during its lifespan comes by way of particle contamination. Through a machine’s life, particles are ingested, generated, or built-in. But no matter how they get there, particles cause a variety of problems for lubricants and machines alike. Fortunately, by combining high-quality filtration with contamination exclusion tools such as desiccant breathers, it is possible to mitigate or avoid many problems that stem from particle contamination and reduce the total cost of machine ownership.
A typical particle population growth lifecycle may look something like this: new oil arrives onsite and is stored unsealed; later, the oil is pumped with a dirty drum pump, then the oil, without being filtered, is transferred to a dirty top-up container; the oil is then poured through a dirty funnel into a machine that does not have a proper breather.
These are just a few of the ways that particles contaminate lubricants before they are even introduced to the machine system. But the good news is that if this story sounds familiar to you, you have a major opportunity to improve contamination control and decrease maintenance costs at your facility.
TTI’s PowerGuard Element line brings together Dual Phase microglass media along with other key performance characteristics:
A typical particle population growth lifecycle may look something like this: new oil arrives onsite and is stored unsealed; later, the oil is pumped with a dirty drum pump, then the oil, without being filtered, is transferred to a dirty top-up container; the oil is then poured through a dirty funnel into a machine that does not have a proper breather.
These are just a few of the ways that particles contaminate lubricants before they are even introduced to the machine system. But the good news is that if this story sounds familiar to you, you have a major opportunity to improve contamination control and decrease maintenance costs at your facility.
We were most amazed by the low particle counts produced after completion of our filtering process. We will definitely be utilizing TTI going forward for our filter needs.
— Lubrication Specialist from Pilot Thomas Logistics
Machines that are not kept clean or that operate in dirty environments can ingest a significant amount of contaminants.
Ingested contaminants are contaminants that enter a machine during use or are ingested because of improper storage techniques. There are three categories of ingested contaminants:
The solution to ingested contaminants is to configure machines for exclusion — this can be done using tools like desiccant breathers.
Generated contaminants are produced within a machine system during use — either from surface wear or oil degradation. Surface particles, such as hose fibers, filter fibers, paint chips, and break-in debris can be generated from mechanical and corrosive wear, cavitation, and exfoliation. The particles generated from the oil degradation process, such as oxidation, include sludge, varnish, coke, and oxide insolubles.
These contaminants are unavoidable but can be controlled through proper lubrication and filtration techniques.
The primary cause of machine failure is the degradation of component surfaces — and the primary cause of surface degradation is particle contamination. The damage that a particle is capable of inflicting depends on two factors: the particle’s size and the particle’s hardness.

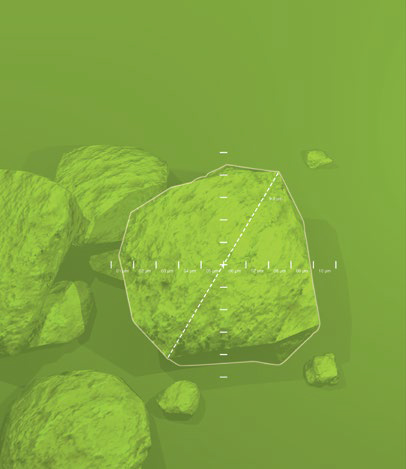

A particle’s size determines how much damage it can cause. Particle size is typically measured in microns (µ). The majority of machine damage is caused by particles between 3 and 10 microns in size, roughly the same size as the lubricating film. As a reference of scale, human hair has a thickness of about 80 µ, fine floor dust a size of 40 µ, and red blood cells typically measure in at 5 µ. When in-service lubricants are submitted to a particle count, smaller particles are generally present in greater numbers than larger particles.
Some solid particles have higher compressive strengths than others; this strength, or hardness, influences the amount of damage a particle will cause. Particles with a high compressive strength cause more significant damage than softer particles. This damage is also influenced by the angularity of a particle, which refers to a particle’s sharp edges. Dirt particles are particularly hard relative to machine surfaces and can be very crystalline in nature, thus having sharp edges.
Measuring the hardness of particles is generally achieved using one of three methods, all of which measure a material’s strength through indentation or scratching: Mohs hardness, Rockwell hardness, and Vickers hardness.
The goal of filtration is to achieve equilibrium — a state where the particle removal rate is equal to or exceeds the particle ingression rate. For filtration efforts to be effective, high-performance filters should be used. Additionally, timely filter servicing should be prioritized. Filters should be seen as an asset in your reliability or maintenance efforts, and choosing the right filter comes down to several key factors.
Structural Integrity refers to a filter’s ability to prevent oil from passing through an unfiltered flow path. The International Organization for Standardization (ISO) has created methods for testing fabrication integrity, flow fatigue, material compatibility, and other structural factors.
A filter’s contamination capacity is the amount of contamination that a filter can hold. Exceeding this limit hinders a filter’s efficiency.
A filter’s placement within a system can affect overall differential pressure. The filter’s surface area and media porosity influence the degree of pressure loss.
The particle capture efficiency of a filter refers to its effectiveness in extracting and retaining oil contaminants.
Flow rates, location, vibration, contamination expectations: these are all factors that influence performance and are produced by a filter’s machine and environment; these factors should be considered when selecting a filter.
Filters and filter housings are often designed to be interchangeable, but just because a filter fits does not mean it’s the right filter for the job. The OEM’s specifications should be referred to when choosing a filter, along with concerns related to the specific operating environment of your machine. One of the most important factors to consider is the filter’s beta rating.
Beta rating is the most prevalent filter rating in the industry. The Multipass Method for Evaluating Filtration Performance of a Fine Filter Element (ISO 16889:1999) is used to derive a filter’s beta rating.
Particle counters are used to test a filter. These counters measure the size and quantity of particles upstream (before passing through the filter) and downstream (after passing through the filter). The upstream particle count is divided by the downstream count, resulting in the beta ratio.
It must be considered, when comparing filters, that beta ratios do not account for actual operating conditions. Filter performance can be influenced by factors like flow surges and temperature changes. Additionally, beta ratios do not indicate a filter’s dirt-holding capacity or long-term stability. Beta ratios serve best as an indication of a filter’s expected performance.
Filter media passages can enlarge (typically due to high differential pressures) to a point where unfiltered oil can pass through without an efficient contaminant capture. Enlarged passages can also release particles that were previously captured by the filter.
In cyclic flow conditions, cracks can form within the filter media, allowing a breach of oil to pass through unfiltered.
Inadequate fitting of a filter or improper placement of filter housing can generate damaging vibrations, deteriorating the filter media. Such deterioration leads to the production of new contaminants made of filter fibers and materials. Embrittlement from incompatible oils or extremely high differential pressures can also result in media disintegration.
When a filter’s dirt-holding capacity is exceeded, the filter media can become plugged, restricting oil flow. Excessive moisture, coolant, and products of oxidation (sludge and varnish) can also cause plugging.
TTI Filter Carts are ideal for small to mid-sized applications for mineral-based fluid filtration. Our lightweight, portable design offers an ideal solution for maintaining fluid cleanliness in facilities with multiple applications.
TTI has partnered with Germany-based FG Industrial Filtration (Formerly Mahle) to produce the PowerGuard Element line. Together, we are leveraging over 58 years of German filter design and manufacturing expertise to supply world-class products for the North American marketplace. We have replicated FG Industrial manufacturing processes on-continent in our facility in Boulder, CO.
TTI has an exclusive media partner for all of our microglass. TTI has chosen this partner for its flagship Dual Phase media which we have made our standard for the entire TTI product line. The Dual Phase microglass media is produced on state-of-the-art automated wet laid production equipment, which offers unparalleled quality control and custom capabilities for hard-to-solve filtration application
Thank you again for the support that you have given. The filters have been working out great. We have begun using these filters in both filtration and dehydration machines with great satisfaction.
— Lubrication Specialist at Gaubert Oil
My only wish is that we would have begun partnering sooner!
Besides their ability to keep oil clean, filters can also be used to determine what is occurring within a machine system. Analysis of a filter’s contamination contents can be used to determine why a machine is malfunctioning or be used to portend impending issues.
Typically, laboratory analysis is needed to determine problems based on a machine’s filter. Occasionally, clues to an issue can be seen with the naked eye. Changes in oil appearance can be indicative of metal contamination, a suspicion that can be confirmed by cutting a filter open and using a strong magnet to extract metal particles, which can then be more easily identified. Metal contamination is a sign of more significant problems.
If a machine is experiencing problems, the filter should not be discarded; rather, it should be maintained in its removed condition and analyzed by the manufacturer or a laboratory. The filter is a bank vault of information that has been collected and stored through its service life.
As we’ve seen, filters are more than just a way to keep our lubricants cleaner; they protect our investments, not only in our oils and fluids, but in our machines themselves. Finding the right solution partner to deliver high-quality filters at a competitive price with quick turnaround times can make a major difference in day-to-day operations and long-term profitability. Choose a partner that understands your needs, so you can trust that your filters are optimally matched to your applications as well as your maintenance and reliability goals.
